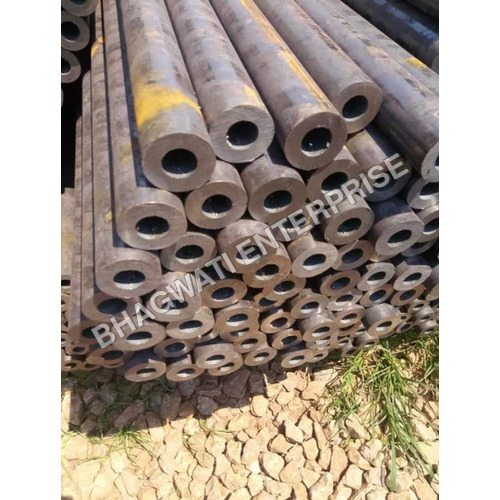

Carbon Steel Seamless Tubes

Product Description

Carbon steel seamless pipes are widely used in various industries for their strength, durability, and versatility. They are made from carbon steel and manufactured without any welding or joints, which enhances their reliability and performance. Here™s a detailed description:

Composition

- Material Carbon steel, which primarily consists of:

  - Carbon (C) 0.05% to 2.0%, depending on the grade and application.

  - Manganese (Mn) Typically 0.30% to 1.0%.

  - Silicon (Si) Up to 0.35%.

  - Additional Elements May include small amounts of sulfur (S) and phosphorus (P), but these are kept to a minimum.

Manufacturing Process

- Bilk Iron and Steelmaking The process begins with the production of carbon steel from raw materials in a blast furnace or electric arc furnace.

- Pipe Formation The steel is heated and extruded through a die to form a hollow pipe. This is done using methods such as rotary piercing and elongation, which shape the steel into seamless pipe without any welds.

- Heat Treatment Pipes are heat-treated (annealed or normalized) to achieve the desired mechanical properties, such as strength and toughness.

- Finishing The pipes are then subjected to finishing processes, including cutting, straightening, and surface treatment to meet specific size and quality standards.

Specifications

- Diameter Carbon steel seamless pipes come in a range of diameters, typically from 1/8 inch to 24 inches or more, depending on the standard and application.

- Wall Thickness Ranges from 1.65 mm to 50 mm or more, with various schedules available (e.g., Schedule 40, Schedule 80).

- Length Generally supplied in standard lengths of 6 meters or 12 meters, but custom lengths can be provided.

Properties

- Strength High tensile and yield strength, making them suitable for high-pressure and high-temperature applications.

- Durability Strong and durable, with the ability to withstand harsh conditions and heavy loads.

- Corrosion Resistance Carbon steel has limited corrosion resistance compared to alloys such as stainless steel; coating or lining may be needed for specific environments.

- Machinability Good machinability for processes such as threading and fitting.

Applications

- Oil and Gas Used for transporting oil, natural gas, and other hydrocarbons.

- Construction Applied in structural applications, including building frameworks, supports, and scaffolding.

- Water and Sewage Used in water distribution systems and sewage pipelines.

- Industrial Employed in various industrial processes, including chemical and power generation facilities.

Standards and Grades

- Standards Common standards include ASTM A106, ASTM A53, API 5L, and EN 10210.

- Grades Various grades are available, such as:

  - ASTM A106 Grade A, B, and C Suitable for high-temperature applications.

  - ASTM A53 Used for general piping and structural purposes.

  - API 5L Specified for oil and gas pipelines.

Advantages

- Seamless Construction The absence of welds improves the pipe's ability to withstand internal pressure and mechanical stresses.

- High Strength Provides excellent mechanical properties and performance.

- Versatility Suitable for a wide range of applications due to its availability in different sizes and grades.

Disadvantages

- Cost Generally more expensive than welded pipes due to the manufacturing process.

- Corrosion Susceptible to corrosion in certain environments; additional protection may be required.

Carbon steel seamless pipes are valued for their strength, durability, and reliability in demanding applications, making them a popular choice across various industries.
